3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit

Model Number : HX0345S001

name : TFT LCD MODULE

Payment Terms : T/T

interface : MIPI

Price : negotiation

view angle : ALL 0' clock

Supply Ability : 100K per month

Certification : ISO14001/ISO9001/IATF16949

size : 3.45"

MOQ : 1000

Delivery Time : 6weeks~8weeks

Driving IC : ST7701S

Place of Origin : China

resolution : 480*640

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Brand Name : HuaXin

Display Technology : Transflective TFT LCD

Contact Now

3.45" Bar TFT LCD Module,480X640 Resolution, MIPI Interface, Driving IC ST7701S,ALL o'clock ,Transflective
Product Specifications
Part NO. HX0345S001
Display Technology Transflective TFT LCD
Diagonal Screen Size 3.45inch
Active Area (mm) 51.84(H)X69.12(V)
Panel size(mm) 55.44(H)X78.89(V)X2.05(T)
Brightness(cd/m2) 120
Resolution 480*640
Interface MIPI
View angle ALL o'clock
Driving IC ST7701S

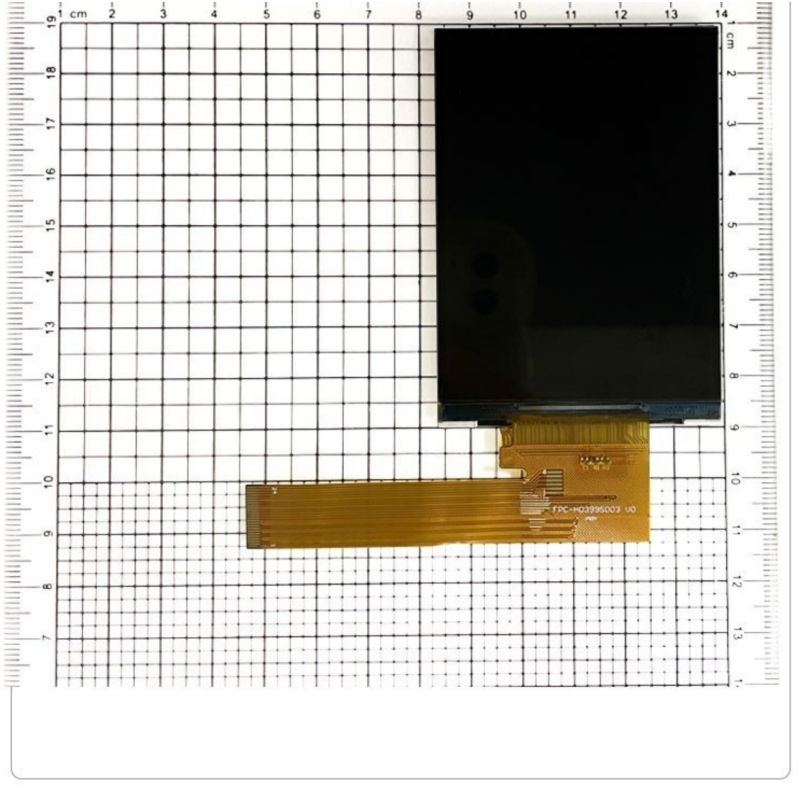

Product Picture

3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit
3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit

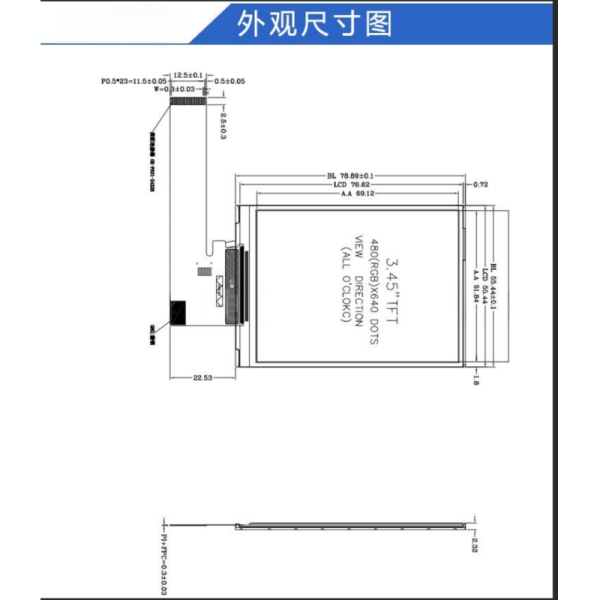

Technical Drawing

3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit

TFT Technology Overview
3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit 3.45"Transflective Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 120nit
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
